Test 20 x 7/16 UNF Adapter

Sale price $14.35 Regular price $15.94

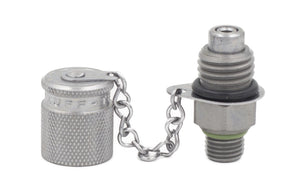

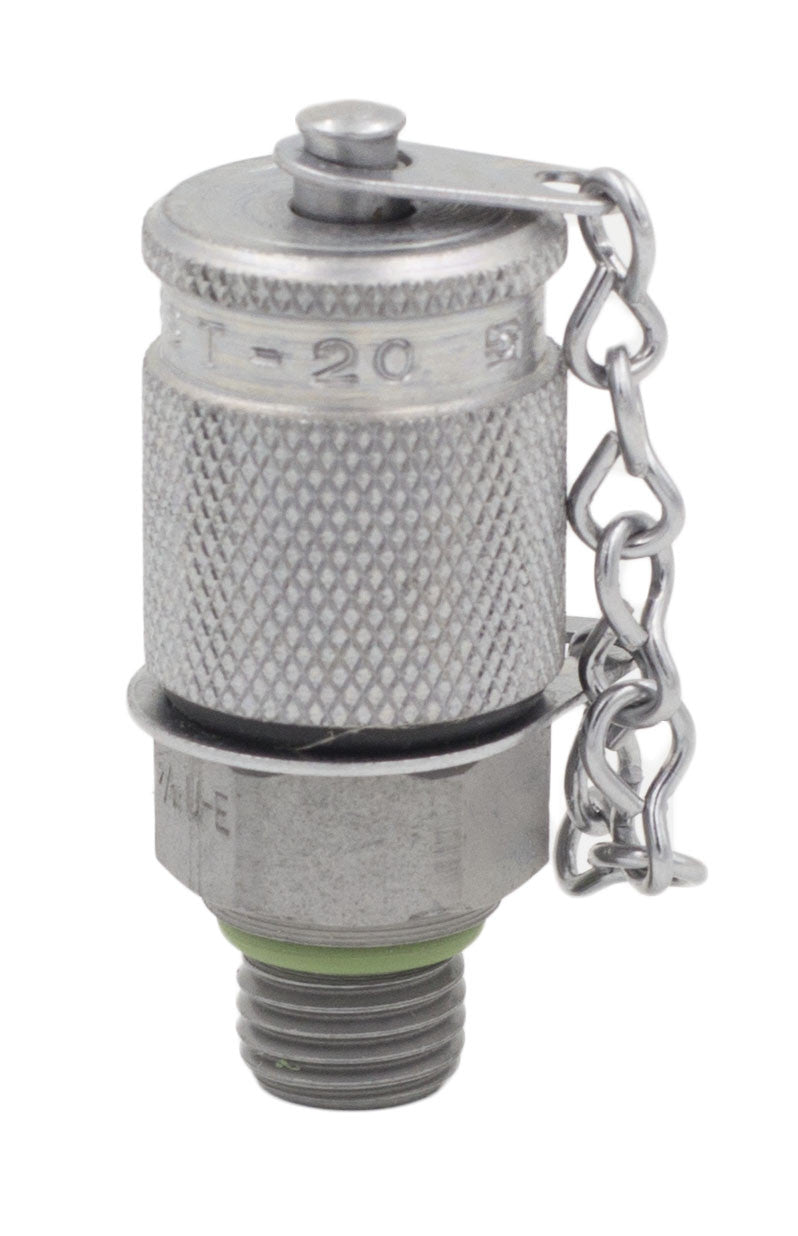

Test 20 x 7/16 UNF Zinc Plated Adapter with Ball Check

Part Number: SMK20-7/16UNF-VE-C6F

Stauff Test 20 Fitting Specifications PDF


  • Connection: Male Test 20 (M16 x 2) x Male 7/16-20 UNF
  • Internal Sealing: FPM (Viton)
  • Material: Steel, zinc/nickel plated CrVI Free
  • Ball: Stainless Steel
  • Max Working Pressure: 9137PSI
  • Temperature Range: -4F to 392F


  • Test system at working pressure
  • Leak proof connection before ball check is open
  • Simple connection to measurement, control and switching devices
  • Self locking metal protective cap

Call 1-888-979-0811 or email sales@alabamaindustrialproducts.com with questions about our Stauff test 20 fittings
