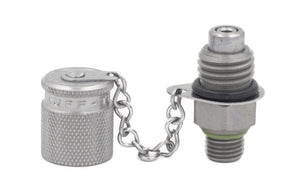

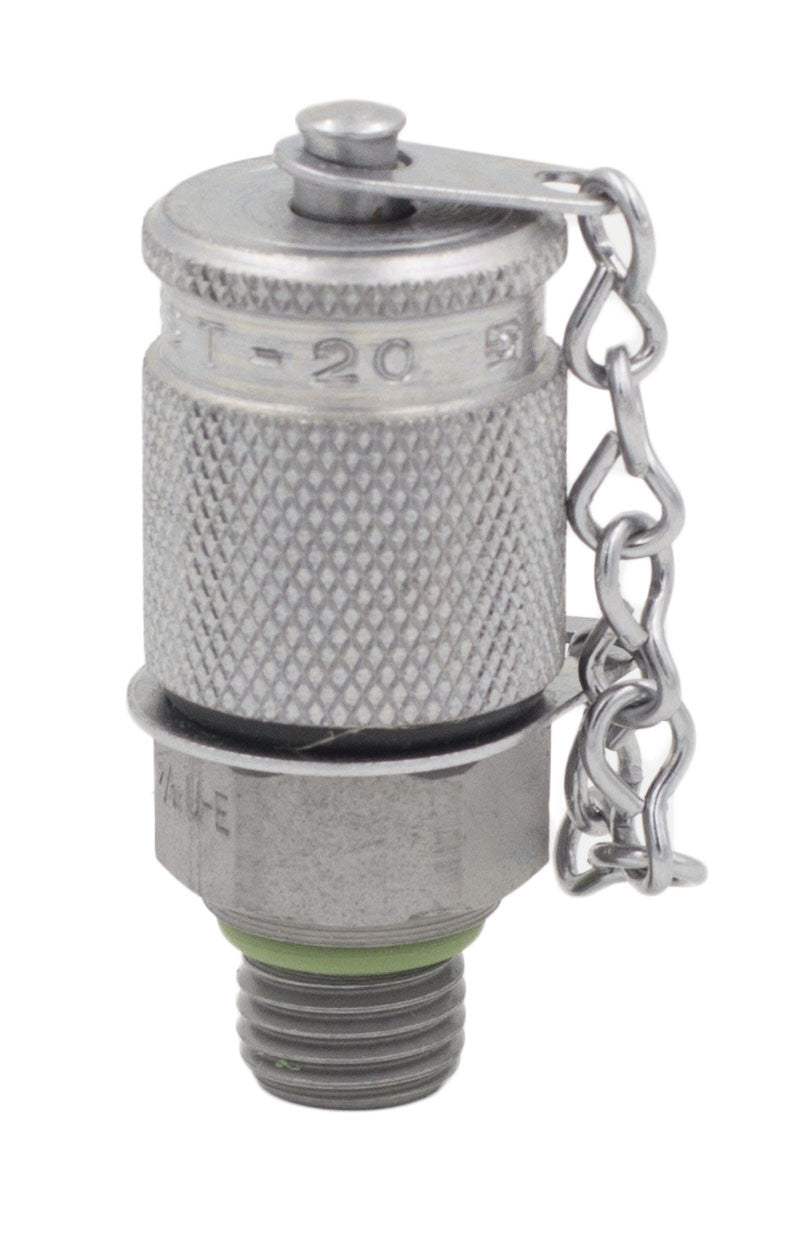

Test 20 x 1/2 UNF Zinc Plated Adapter with Ball Check Buna-N Seals
Part Number: SMK20-1/2UNF-PE-C6F
Stauff Test 20 Fitting Specifications PDF
Specifications
- Connection: Male Test 20 (M16 x 2) x Male 1/2-20 UNF
- Internal Sealing: NBR (Buna-N)
- Material: Steel, zinc/nickel plated CrVI Free
- Ball: Stainless Steel
- Max Working Pressure: 9137PSI
- Temperature Range: -4F to 212F
Advantages
- Test system at working pressure
- Leak proof connection before ball check is open
- Simple connection to measurement, control and switching devices
- Self locking metal protective cap
Call 1-888-979-0811 or email sales@alabamaindustrialproducts.com with questions about our Stauff test 20 fittings
