Stauff Test 20 x 7/16 UNF Stainless Steel Adapter
Stauff Test 20 x 7/16 UNF Stainless Steel Adapter
  • Load image into Gallery viewer, Stauff Test 20 x 7/16 UNF Stainless Steel Adapter
  • Load image into Gallery viewer, Stauff Test 20 x 7/16 UNF Stainless Steel Adapter

Call 1-888-979-0811 or email sales@alabamaindustrialproducts.com
with questions about our accumulator charging kits

Stauff Test 20 x 7/16 UNF Stainless Steel Adapter

Regular price
$63.29
Sale price
$63.29
Regular price
$74.46
Sold out
Unit price
per

Description

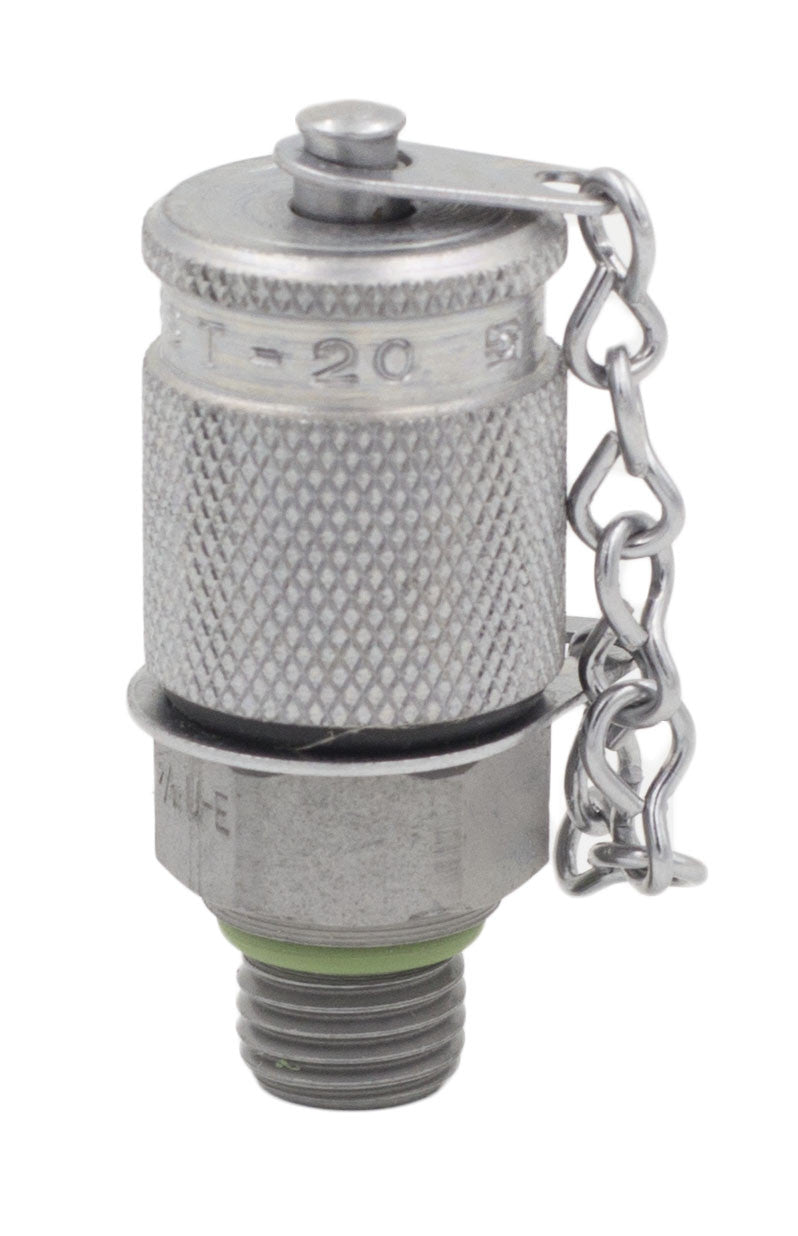

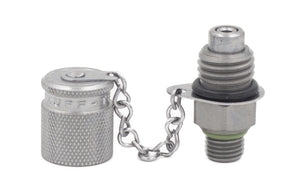

Test 20 x 7/16 UNF Stainless Steel Adapter with Ball Check

Part Number: SMK20-7/16UNF-VE-V2A

Stauff Test 20 Fitting Specifications PDF

Specifications

  • Connection: Male Test 20 (M16 x 2) x Male 7/16-20 UNF
  • Internal Sealing: FPM (Viton)
  • Material: Stainless Steel (1.4305 / AISI 303)
  • Ball: Stainless Steel
  • Max Working Pressure: 9137PSI
  • Temperature Range: -4F to 392F

Advantages

  • Test system at working pressure
  • Leak proof connection before ball check is open
  • Simple connection to measurement, control and switching devices
  • Self locking metal protective cap

Call 1-888-979-0811 or email sales@alabamaindustrialproducts.com with questions about our Stauff test 20 fittings
