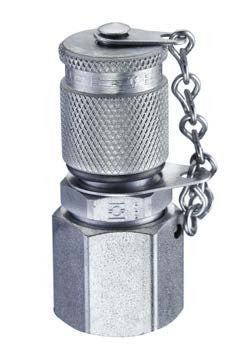

Test 20 x 1/4 JIC Zinc Plated Adapter with Ball Check
Part Number: SMK20-JIC1/4-VK-C6F
Stauff Test 20 JIC Adapters Specifications PDF
Specifications
- Connection: Male Test 20 (M16 x 2) x Female 1/4 JIC (7/16-20 UNF)
- 37 Degree Fitting according to SAEJ514
- Internal Sealing: FPM (Viton)
- Material: Steel, zinc/nickel plated CrVI Free
- Ball: Stainless Steel
- Temperature Range: -4F to 392F
Advantages
- Test system at working pressure
- Leak proof connection before ball check is open
- Simple connection to measurement, control and switching devices
- Self locking metal protective cap
Call 1-888-979-0811 or email sales@alabamaindustrialproducts.com with questions about our Stauff test 20 fittings
