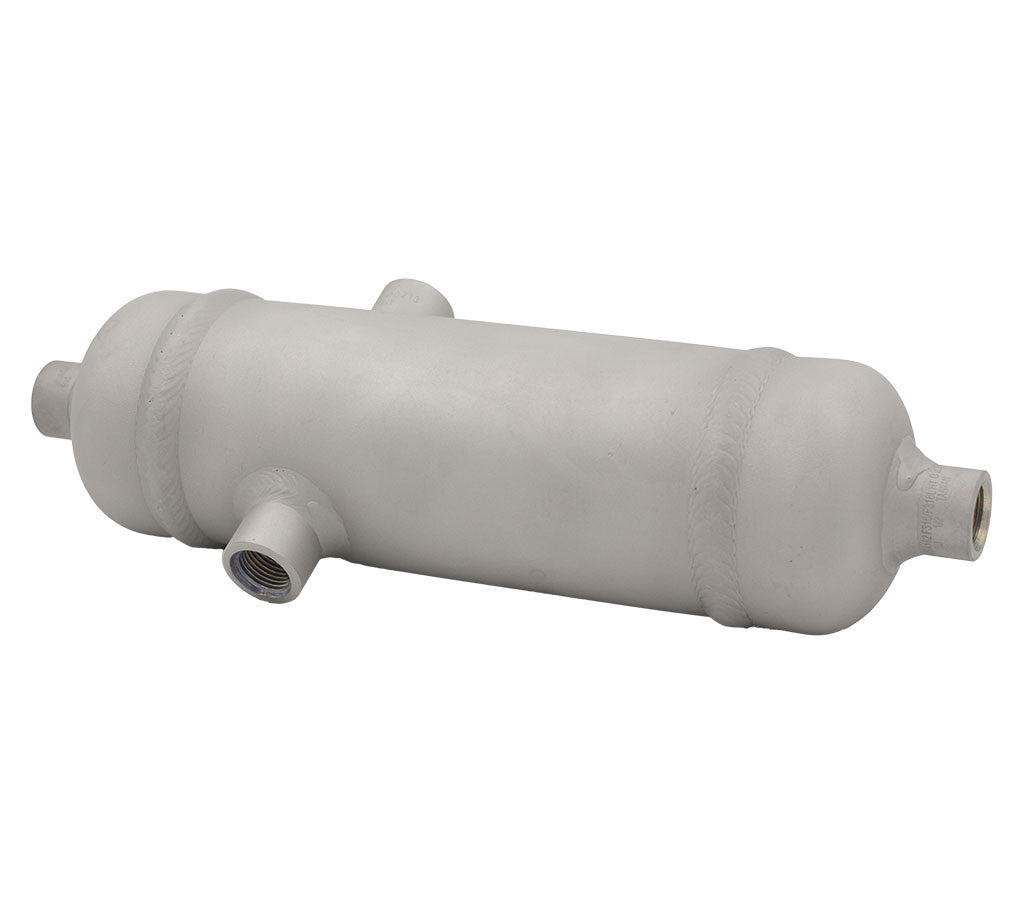

3" Diameter x 12" Chamber S/40 316 Stainless Steel Four Connection Condensate Pot
Part # CP-3-12-316SS-S-C-N8
Condensate Pot Specifications PDF
Specifications
- Diameter: 3.50"
- Chamber Length: 12"
- Material: 316 Stainless Steel
- Connections: Four 1/2" FNPT (Top, Bottom Side and Side)
- Pipe Schedule: 40 (S)
- Max Working Pressure: 1728PSI @100F
- Hydro Tested to 2800PSI (Hydro Test Certificate Provided at No Charge)
Available Options Upon Request
- X-Ray & Dye Pen Testing
- ASME U Stamp
- ASME S Stamp
- Socket Weld Connections
Condensate Pots are a form of protection for sensitive instrumentation components. They are design to collect foreign debris and accumulate condensate to help prevent damage to sensitive inline instruments. The bottom connection is able to serve as a drain port that can be equipped with one of Alabama Industrial Products ball valves.
We can fabricate any custom condensate pot per your requirements. We offer condensate pots in 304 stainless steel, 316 stainless steel, chrome P11, chrome P22, chrome P91, and hastelloy. Size can vary from 2" thru 12" pipe at any length and any pipe schedule.
Call 1-888-979-0811 or email sales@alabamaindustrialproducts.com with questions about our Condensate Pots
