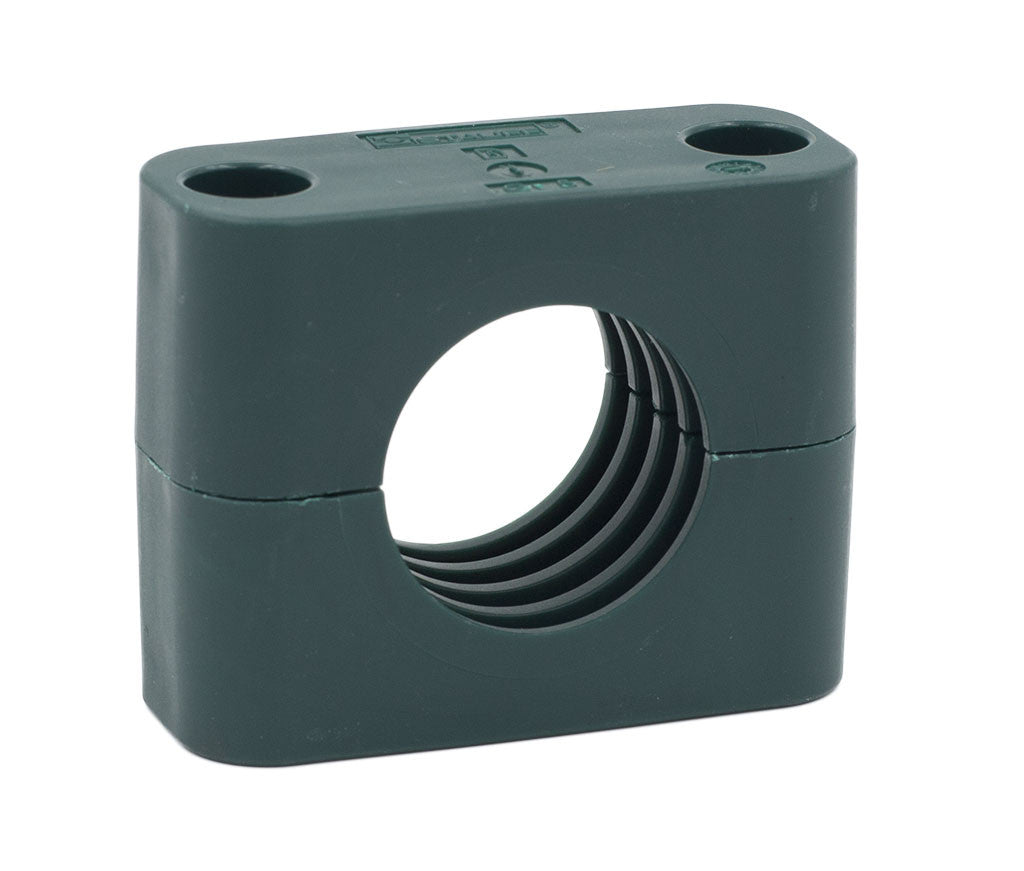

Stauff Standard Series 4" Tube Polypropylene Clamp Body
Part # 8102LPP
Stauff Standard Series Clamp Body Specifications PDF
Specifications
- Size: 4" Tube (O.D.)
- Group: 8 (Standard Series)
- Material: Polypropylene
- Length: 5.79"
- Width: 1.18"
- Height: 4.65"
- Bolt Hole Center to Center: 4.72"
- Bolt Hole: To be used with 1/4-20 UNC or M6
- Max Temperature (Brief Exposure) -20F to 215F
- Operating Temperature (Continuous Exposure) -22F to 194F
