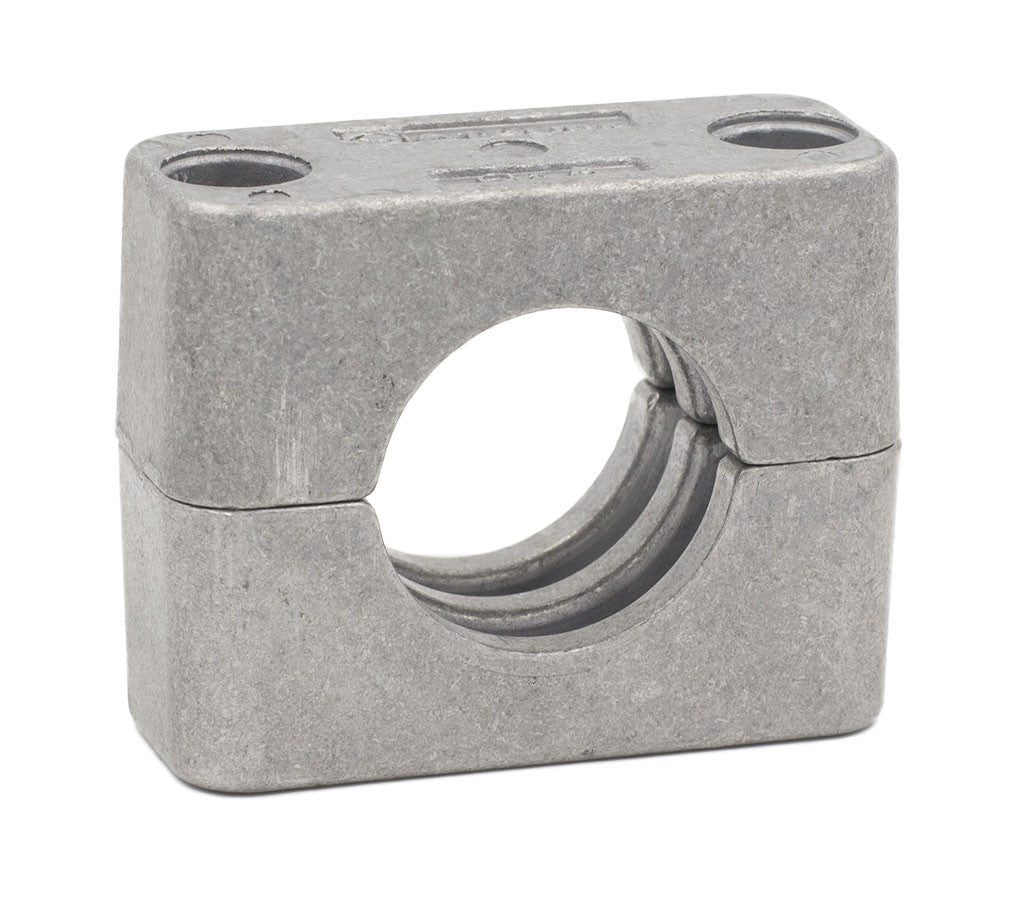

Stauff Standard Series 3/4" Tube Aluminum Clamp Body
Part # 319AL
Stauff Standard Series Clamp Body Specifications PDF
Specifications
- Size: 3/4" Tube (O.D.)
- Group: 3 (Standard Series)
- Material: Aluminum
- Length: 1.97"
- Width: 1.18"
- Height: 1.42"
- Bolt Hole Center to Center: 1.30"
- Bolt Hole: To be used with 1/4-20 UNC or M6
- Max Temperature: 572F
Call 1-888-979-0811 or email sales@alabamaindustrialproducts.com with questions about our Stauff clamp bodies
