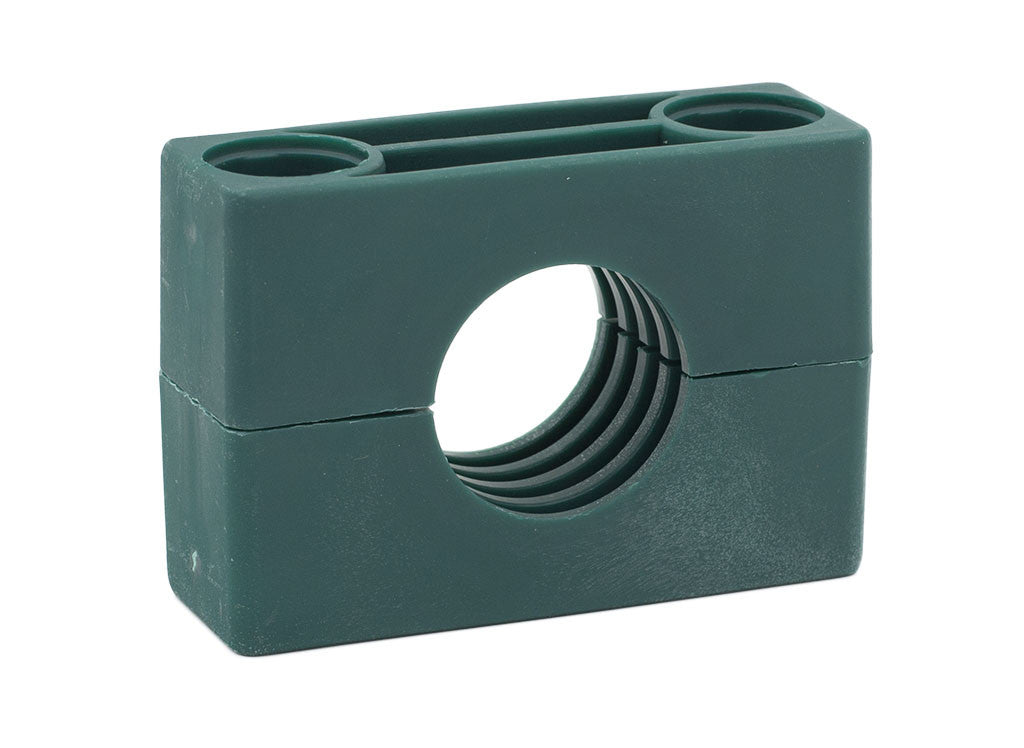

12" Pipe Heavy Series Polypropylene Clamp Body

Stauff Heavy Series 12" Pipe Polypropylene Clamp Body

Part # 11324PP

Stauff Heavy Series Clamp Body Specifications PDF

Specifications

• Size: 12" Pipe
• Group: 11S (Heavy Series)
• Material: Polypropylene
• Length: 18.50"
• Width: 6.38"
• Height: 16.14"
• Bolt Hole Center to Center: 15.55"
• Bolt Hole: To be used with 1-1/4 -7 UNC or M30
• Max Temperature: -22F to 194F

Call 1-888-979-0811 or email sales@alabamaindustrialproducts.com with questions about our Stauff clamp bodies
