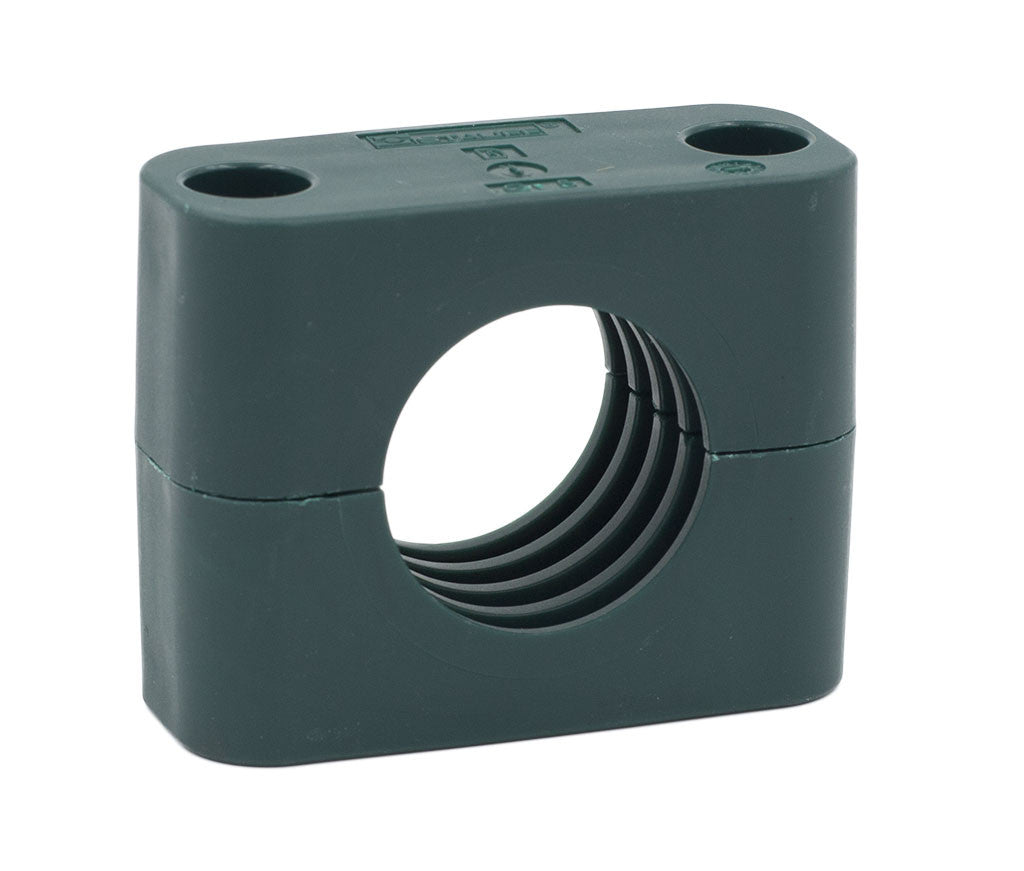

Stauff Standard Series 1/4" Tube Polypropylene Clamp Body
Part # 1064APP
Stauff Standard Series Clamp Body Specifications PDF
Specifications
- Size: 1/4" Tube (O.D.)
- Group: 1A (Standard Series)
- Material: Polypropylene
- Length: 1.46"
- Width: 1.18"
- Height: 1.06"
- Bolt Hole Center to Center: 0.79"
- Bolt Hole: To be used with 1/4-20 UNC or M6
- Max Temperature (Brief Exposure) -20F to 215F
- Operating Temperature (Continuous Exposure) -22F to 194F
Call 1-888-979-0811 or email sales@alabamaindustrialproducts.com with questions about our Stauff clamp bodies
