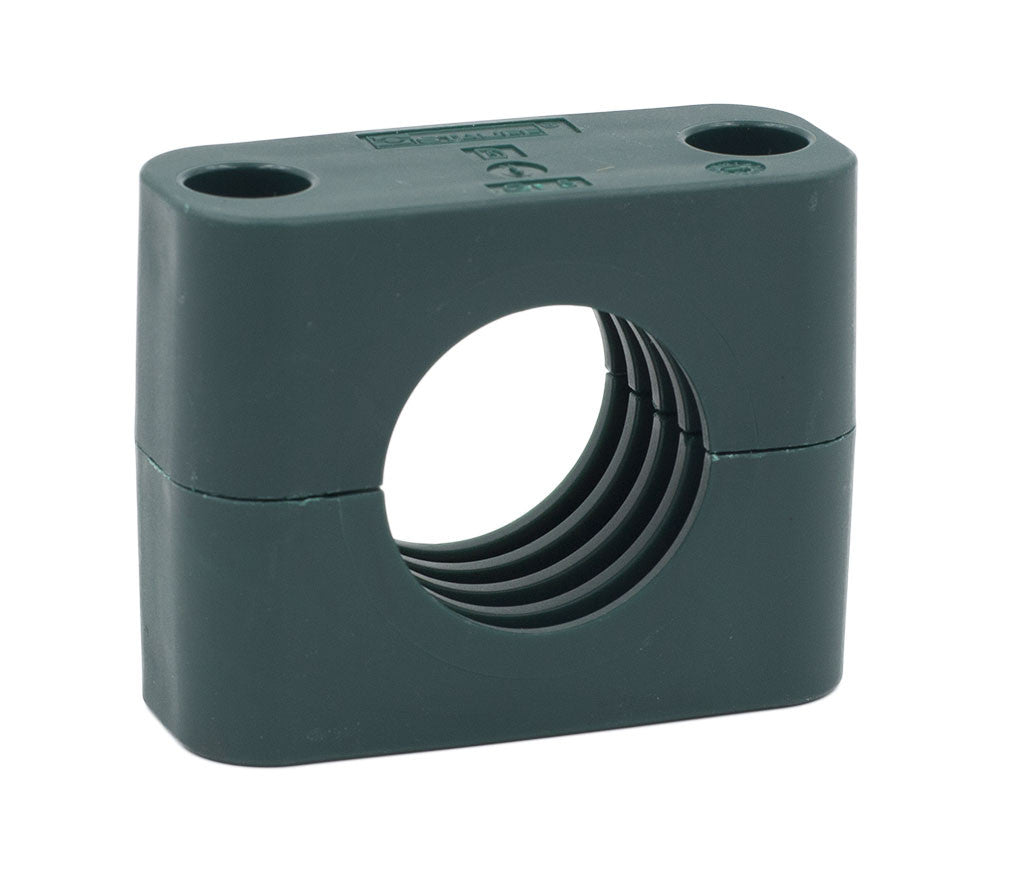

Stauff Standard Series 1-1/2" Tube Polypropylene Clamp Body
Part # 538PP
Stauff Standard Series Clamp Body Specifications PDF
Specifications
- Size: 1-1/2" Tube (O.D.)
- Group: 5 (Standard Series)
- Material: Polypropylene
- Length: 2.80"
- Width: 1.18"
- Height: 2.28"
- Bolt Hole Center to Center: 2.05"
- Bolt Hole: To be used with 1/4-20 UNC or M6
- Max Temperature (Brief Exposure) -20F to 215F
- Operating Temperature (Continuous Exposure) -22F to 194F
