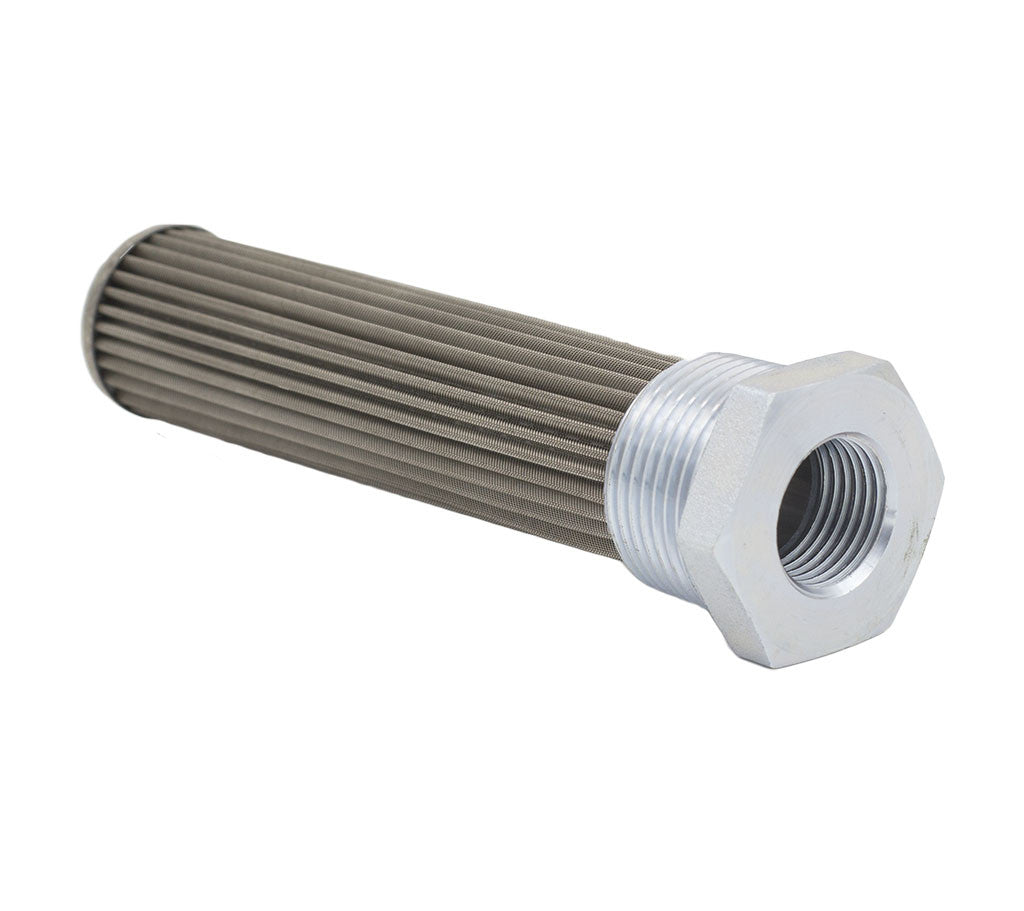

Stauff 1-1/2" MNPT Tank Mount Suction Strainer Without Bypass
Part # TMF-15-0
Tank Mount Suction Strainer Specifications PDF
Designed as in-tank suction strainer elements for direct installation into suction lines of pumps; should always be installed below the minimum fluid level of the reservoir
Specifications
- Male Connection: 1-1/2" MNPT
- Female Connection: 1" FNPT
- Threaded End Cap: Cast Iron
- Filter: Stainless Steel Mesh
- Micron Rating: 125 micron
- Max Flow Rate: 15 GPM
- Operating Temperature: 250F Max
Media Compatibility
- Suitable for use with mineral and petroleum based hydraulic fluids (HL and HLP)
Call 1-888-979-0811 or email sales@alabamaindustrialproducts.com with questions about our Stauff suction strainers
