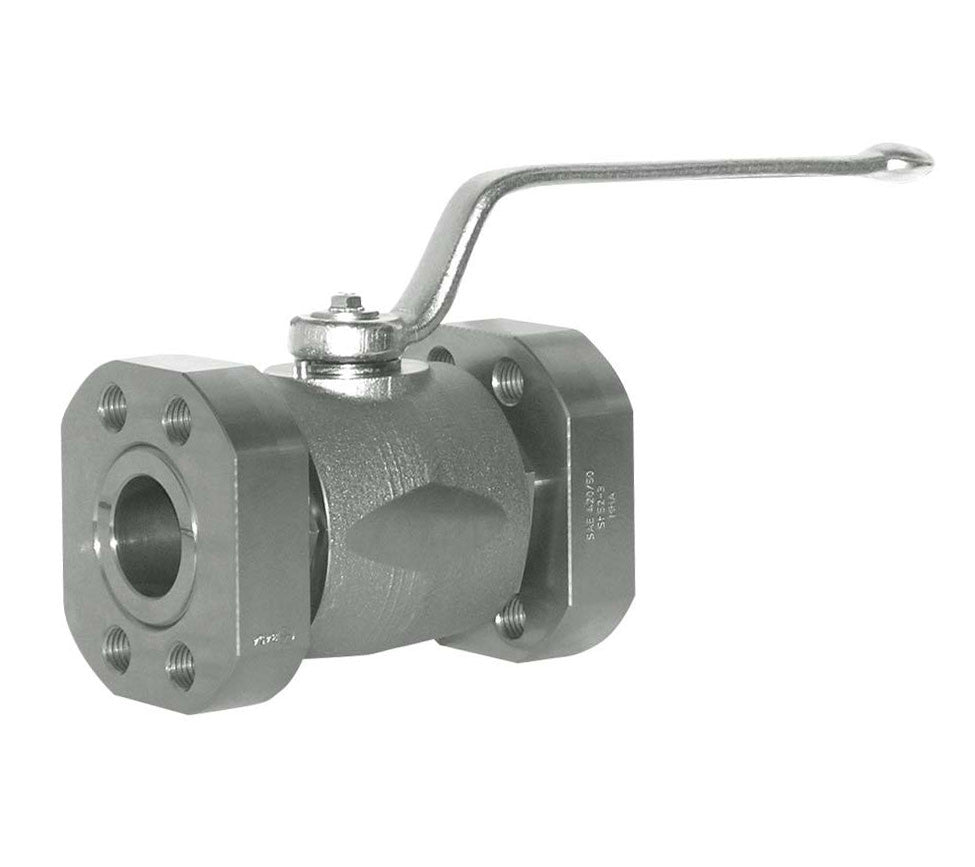

1-1/2" Code 62 Mating Flange Stainless Steel Ball Valve

Sale price $1,605.99 Regular price $1,889.41

Stauff 1-1/2" Code 62 Mating Flange Stainless Steel Ball Valve

Part # FBV2S241101M

Stauff FBV2S Series Ball Valve Specifications PDF

Specifications

  • Connection Size: 1-1/2" SAE Flange Size (DN 40)
  • SAE Code: Code 62
  • Max Pressure: 6000PSI
  • Flange Thread: UNC Threads
  • Body: 316 Stainless Steel
  • Ball: 316 Stainless Steel
  • Stem: 316 Stainless Steel
  • Ball Seat: Delrin (POM)
  • O-rings: FPM (Viton)
  • Operating Temperature: -4F to 212F

Locking Device

  • Locking devices are available as a standard upon request
