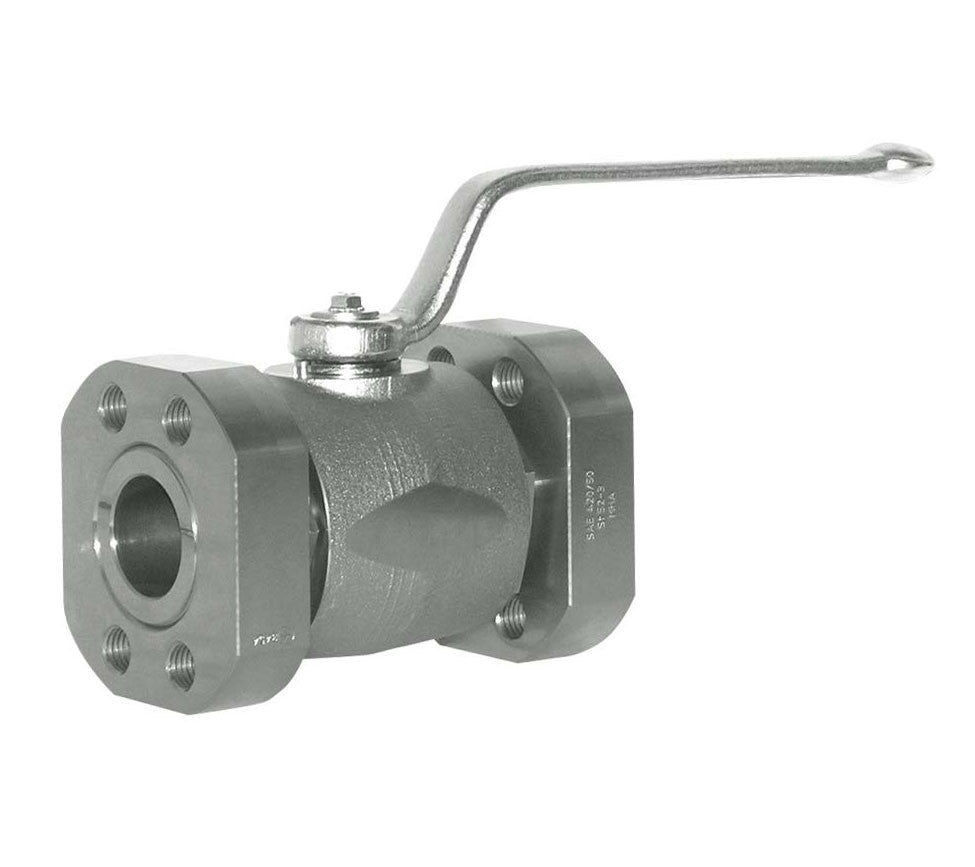

1-1/2" Code 62 Mating Flange Ball Valve

Sale price $600.24 Regular price $706.17

Stauff 1-1/2" Code 62 Mating Flange Forged Body Ball Valve

Part # FBV2S240001M

Stauff FBV2S Series Ball Valve Specifications PDF


  • Connection Size: 1-1/2" SAE Flange Size (DN 40)
  • SAE Code: Code 62
  • Max Pressure: 6000PSI
  • Flange Thread: UNC Threads
  • Body: Carbon Steel, zinc/iron-plated
  • Ball: Carbon Steel, hard chrome-plated
  • Stem: Carbon Steel
  • Lever: Carbon Steel
  • Ball Seat: Delrin (POM)
  • O-rings: FPM (Viton)
  • Operating Temperature: -4F to 212F

Locking Device

  • Locking devices are available as a standard upon request

Call 1-888-979-0811 or email sales@alabamaindustrialproducts.com with questions about our Stauff Ball Valves
